Pelantar penggerudian mendatar

Vermeer D9X13 S2 - Navigator

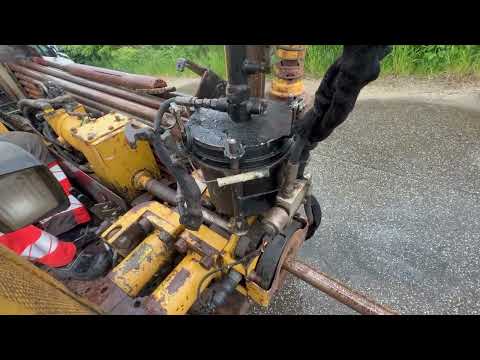

An authorized SUBARU dealer in Łaziska Górne has a Vermeer D9x13 Series 2 horizontal directional drilling rig from 2012 for sale, with 5600 operating hours.
We specialize in importing and selling Vermeer and Ditch Witch drilling rigs.

A special price is offered for self-collection from Denmark. Once the machine is delivered, refurbished, and fully serviced, the price will be a few thousand euros higher.

The machine comes directly from Denmark, from its first owner. It is a compact and efficient HDD drilling rig, ideal for directional drilling for fiber optic, water, gas, power, and sewer installations, even in areas with limited space.

Technical specifications of the Vermeer D9x13 Series 2:
Engine: Kubota V1505T Diesel, turbocharged
Engine power: 47 HP / 35 kW
Push/pull force: 40 kN / 9000 lbs
Maximum torque: 1763 Nm
Spindle speed: up to 220 rpm
Maximum carriage speed: 42.7 m/min
Drilling fluid pump: 34.1 l/min or 56.8 l/min, depending on the version
Maximum drilling fluid pressure: 51.7 bar
Drilling fluid tank on the machine: 94.6 l
Ijdozfgt Sepfx Al Aoth
Drill rods: Vermeer Firestick, length 1.8 m, diameter 42 mm
Machine length: 3.80 m
Transport width: 0.90 m
Maximum working width: 1.08 m
Height: 1.75 m
Weight with drill rods: approximately 2860 kg

Thanks to the extendable tracks, the machine is very stable during operation and, at the same time, exceptionally narrow during transport and operation in confined spaces.

Additionally, a drilling fluid system is available:
We also have a small Ditch Witch FT5 drilling fluid system/mixer from 2021 available for this drilling rig, which is a perfect match for this model and provides a practical set for small to medium-sized drilling projects.
Ditch Witch FT5 – basic data:
Year of manufacture: 2021
Tank capacity: approximately 757 liters / 200 gallons
Maximum flow rate to the drilling rig: approximately 68 l/min
Engine: Honda GX160, gasoline
Engine power: approximately 5.4 HP
Dimensions: approximately 185 × 81 × 136 cm
Weight: approximately 182 kg

It is possible to purchase the drilling rig alone or as a set with the Ditch Witch FT5 drilling fluid system.

We specialize in the professional sale of construction, municipal, and specialized machinery. We are also an Authorized Subaru Dealer.

We can arrange transport to the desired address throughout Poland.
For more information, photos, videos, and technical details, please contact our sales representatives.

We invite you to contact us.
