Mesin jalur tepi

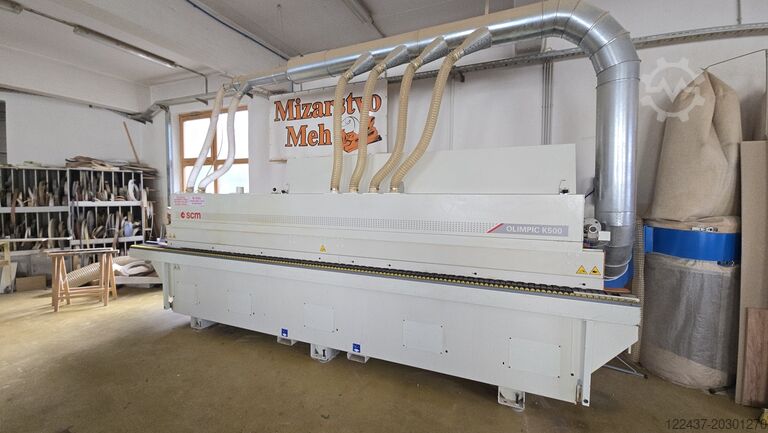

SCM OLIMPIC K500 T-ER2

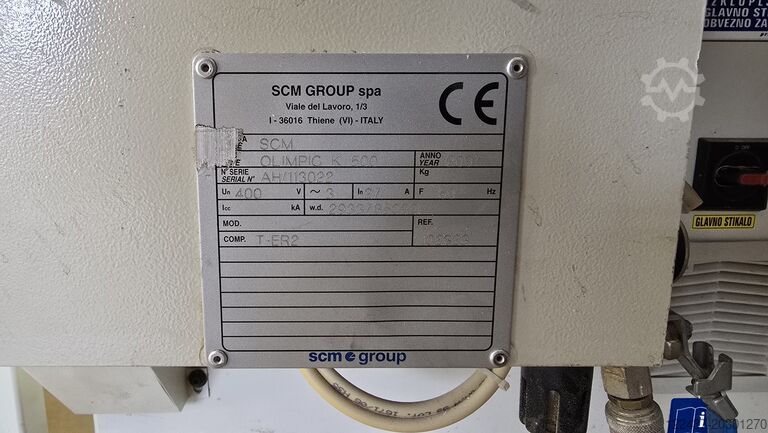

Brand: SCM
Model: OLIMPIC K 500 T/ER-2 - CE

Automatic edge banding machine with sanding unit for wooden, veneer, PVC, melamine, ABS edges – suitable for furniture manufacturing, joinery, custom fittings, panels, kitchens, bathroom furniture, and various other applications

Technical specifications:

Min./max. panel height: 8–60 mm
Panel height with corner rounding unit: 10–45 mm
Edge thickness: 0.4–8 mm
Edge thickness from coil: 0.4–3 mm
Minimum panel width: 55 mm
Feed speed: 11 m/min
Pressure beam with motorized vertical movement
Panel support rail
Sound-insulated safety enclosure
Fluid inlets

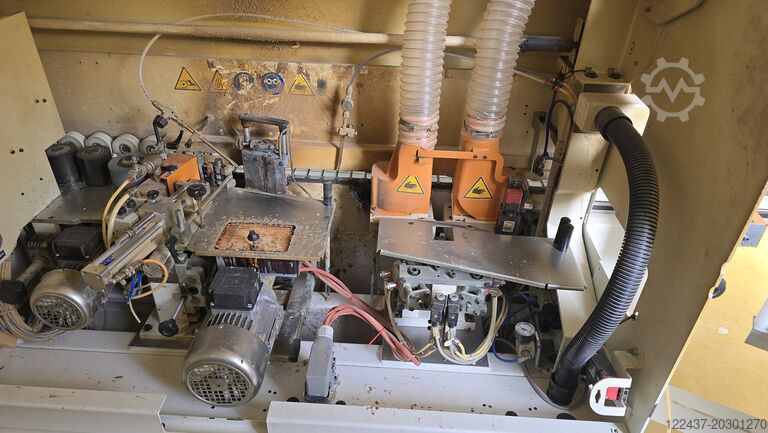

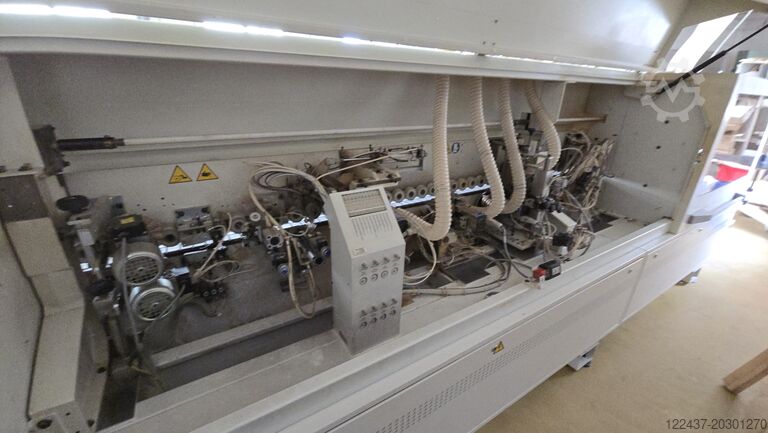

Components:

Anti-adhesive spraying unit with two nozzles – two tanks for anti-adhesion liquid
Pre-milling units with two high-frequency motors – H64 mm diamond tools – diameter 100 mm, bore 30 mm, height 65 mm – copying set
Gluing unit VC 560 for edge application on panels up to 60 mm – glue pot capacity: 1.5 kg – exchangeable glue pot
End trimming unit with two independent motors, each 0.35 kW at 12,000 rpm – motor tilt from 0° to 15° – 2 saw blades, diameter 115 mm – front copying devices
Tilting trimming/bevelling unit for removing top and bottom edge overhang – 2 motors at 0.55 kW – 12,000 rpm – tilt range from 0° to 25° – two-position pneumatic set for quick change between thin or radius edges
Corner rounding unit with two motors on prismatic guides – for rounding and trimming thin or thick edges – 2 motors at 0.55 kW – 12,000 rpm
Pgedpfx Aoxnvr Ashvsw
Edge scraping unit for optimal finishing of ABS/PVC edges with rotary copying and extraction hood, scrap collection cassette
Glue scraping unit – removes glue residues from the lower and upper panel surfaces
Buffing unit for cleaning and polishing plastic edges – motor 0.25 kW – brush diameter 150 mm
Compressed air: 7 bar
Overall dimensions: 5500 x 1150 x 1550 (H) mm
Weight: 1,780 kg
Recently serviced
New diamond pre-millers
New copying wheels...
