Pelarik - dikawal kitaran

MONFORTS KNC 8 S - 3000

Ref. -No.: 10365
Manufacturer: MONFORTS
Type: KNC 8 S - 3000
Year of construction: 1999
Type of control: CNC

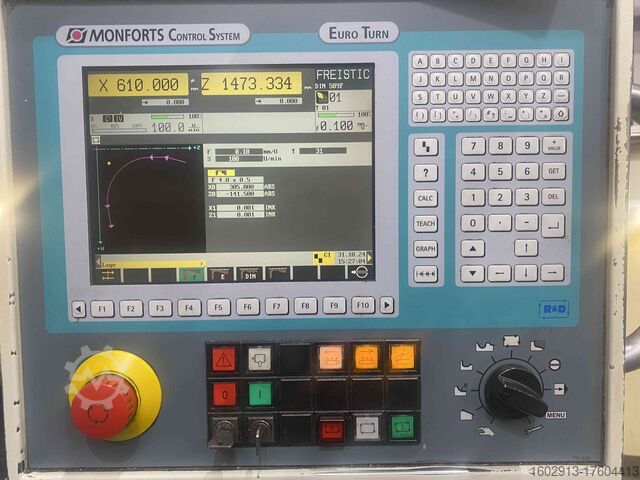

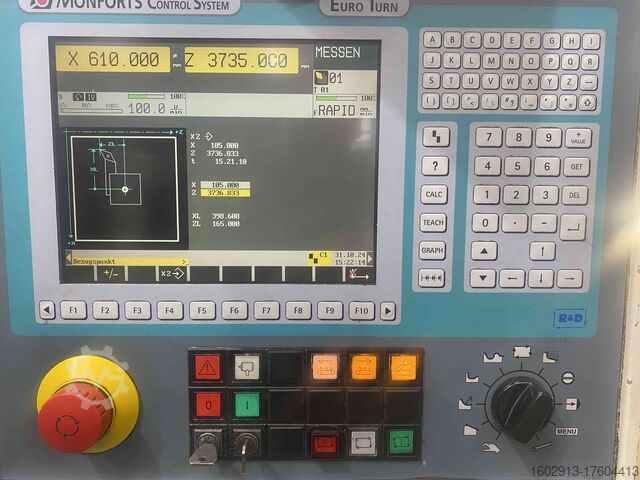

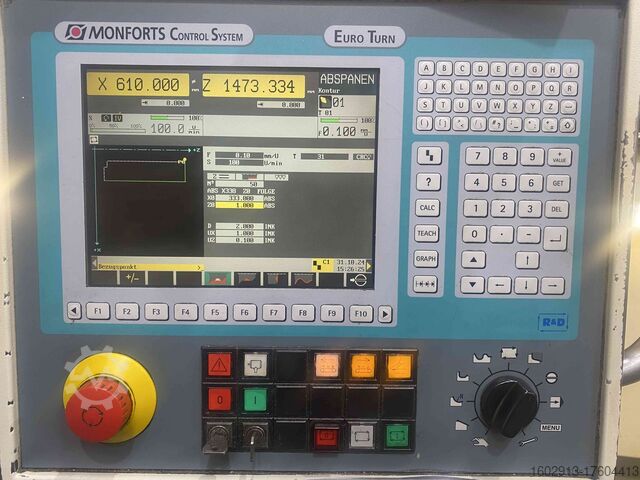

Control: MTC K
Storage location: Halberstadt
Country of origin: Deutschland
Machine-No.: 178.05
X stroke: 455 mm
Z - stroke: 2850 mm
Chuck diameter: 315/400/500 mm
Centre Distance: 3000 mm
Feed Capacity - Z: 23,9 kN
Feed Capacity - X: 11,3 kN
Rapid Travel Speed X-Axis: 6,8 m / min
Rapid Travel Speed Z-Axis: 4 m / min
Circumferential diameter over radial slide: 540 mm
Max swing diameter: 830 mm
travel of the cross slide: 450 mm
Spindle head max. passage for violent material: 88 mm
Spindle head max. passage for bare material: 90 mm
Tailstock outside diameter of the quill: 125 mm
Tailstock maximum quill stroke: 200 mm
Tailstock inner cone: MK6 Type
hydraulic tank: 15 L.
coolant reservoir: 220 L.
Coolant tank at chip conveyor: 160 L.
Machine length: 5200 mm
Machine width: 2110 mm
Machine Height: 1995 mm
Weight Of The Machine Ca.: 6,850 (Ohne Späneförderer und Kühlmittelbehäter) t

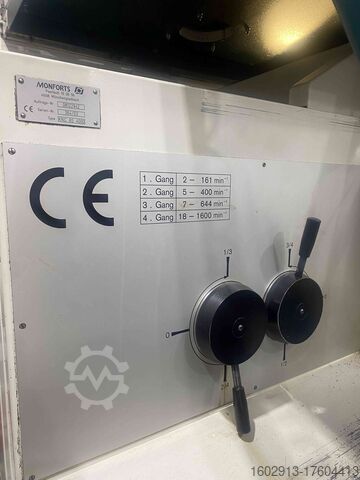

Headstock
Spindle Head: DIN 55027 - 11x290
Laedpfexqd Azex Abyjh

Further information:
Additional lubricating oil tank approx. 6l
incl. tools

Machine is under power and can be inspected by arrangement.
