Matec 30 HV CNC mesin pengilangan

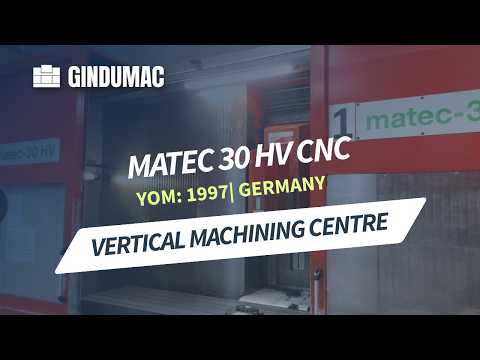

Matec 30 HV CNC

This 4-axis Matec 30 HV CNC was manufactured in 1997. It features an impressive X-axis travel of 4000 mm, Y-axis travel of 600 mm, and Z-axis travel of 800 mm. The machine is equipped with a powerful 10 kW drive and a tool changer with 36 magazine positions. If you are looking to get high-quality machining capabilities, consider the Matec 30 HV CNC vertical machining centre we have for sale. Contact us for further details.

• Axes travel and speeds
• X-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min
• Y-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min
• Z-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min
• Spindle
• Drive power (100% duty cycle): 10 kW from 2000 rpm; torque 48 Nm up to 2000 rpm; approx. 6 Nm at 15,000 rpm (M = P*9550/n)
• Drive power (25% duty cycle): 15 kW from 2000 rpm; torque 72 Nm up to 2000 rpm; approx. 10 Nm at 15,000 rpm (M = P*9550/n)
• Coolant: Internal coolant 20 bar
• Head: Swivel head with 1° indexing increments
• Tooling
• Tool changer: 36 positions
• Max. tool diameter: 130 mm
• Work area and clamping
• Max. workpiece length for double-sided end machining: X = 3500 mm − 2 × max. tool length
• Clamping surface: X = 4500 mm (clamping plate length)
• Y = 650 mm (clamping plate length); 7 T-slots, 125 mm spacing
Lhedpfx Ajyzq A Sji Tsg
• Electrical connection: Total connected load 42 kVA
