Krones Contiform, Mecafill, Canmatic lini pengisian untuk PET (sekali guna) (2004)

Krones Abfülllinie für PET (Einweg)

Overview

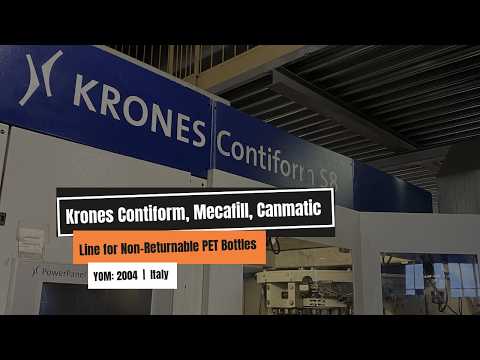

Krones PET bottling line (wet part) built in 2004 for still and carbonated water: a CONTIFORM S8 stretch blow moulder blocked with a MECAFILL isobaric filler and capper, followed by a CANMATIC hot-melt labeller with CHECKMAT inspection. Nominal output is 13,500 bottles/hour on 0.5 L. The line runs 0.5 L, 1.0 L and 1.5 L PET bottles with PCO 1881 neck finish. It is still installed and under power, and can be visited.

Technical data

- Output: 13,500 bph (0.5 L)
- Formats: 0.5 L (11.9 g preform), 1.0 L (22.9 g), 1.5 L (25.5 g)
- Neck finish: PCO 1881
- Filler: isobaric, 50 valves, pitch 113 mm
- Capper: 10 heads, pitch 113 mm
- Blow moulder: 8 cavities, mould sets for all three formats
- Electrical supply: 230/400 V, 3-phase, 50 Hz
- Year of manufacture: 2004

Scope of Delivery

- Stretch blow moulder | Krones | CONTIFORM S8 | 8 cavities, moulds for 0.5 L, 1.0 L and 1.5 L | 2004
- Preform feeding | . | Preform tipper, preform hopper and infeed chute | 2004
- Transfer | Krones | Gripper transfer from blow moulder to filler, 164 grippers
- Isobaric filler | Krones | MECAFILL | 50 valves, pitch 113 mm | 2004
- Capper | Krones | 10 heads, pitch 113 mm
- Air extraction | Galvani Clean Technology | Extraction system for the filler | 2004
- Nitrogen dosing | VBC | NITRODOSE SYSTEM | Liquid nitrogen dosing
- Saturator | Fluid Engineering | EURO SAT | 2004
- CIP unit | Fluid Engineering | EURO SAN | 2004
- Labeller | Krones | CANMATIC | Hot melt, wraparound paper labels, 10 plates | 2004
- Laser marker | Domino | Mounted on the labeller
- Inspection | Krones | CHECKMAT | Fill level, cap and label inspection at the labeller outfeed
- Conveyors | Bottle conveyors and accumulation table up to the shrink wrapper infeed (shrink wrapper not included)
- Spare parts | Main mechanical spare parts for the blow moulder and filler block
Guedpjz Sl Nrofx Altoh

Condition

Used - still installed and under power in production. The line can be visited on request.

Availability

Available from 1 March 2027, after dismantling. Location: Italy.
