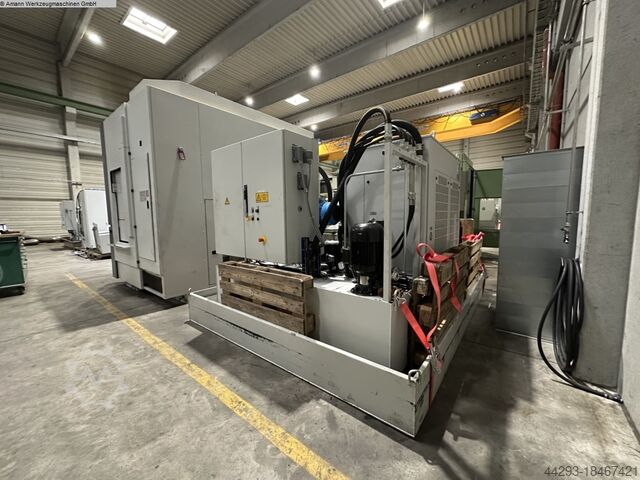

Mesin pengisar gear serong

KLINGELNBERG G 27

max. wheel diameter 300 mm
max. module 8
min. module 0,7
Control SINUMERIK 840 D
min/max. pitch cone angle - 90 / + 90 °
workpiece spindle - bore 127 mm
grinding wheel diameter 50 - 230 mm
Iaodpfx Afevxww Sorsu
spindle speeds (infinitely variable) 7.500 U/min
total power requirement 146 kW
work piece spindle speed 700 U/min
weight of the machine ca. 21 t
dimensions of the machine ca. 9,5 x 3,6 x 3,1 m
Measuring probefor tooth gap(integrated on the grinding head)
External grinding spindle cooling system
ELBARON oil mist extraction (integrated in the machine)
Hoffmann coolant filter system
Was used for the serial production of spiral-toothed ring gears
No clamping devices
No grinding wheels / grinding wheel flanges
No dressing wheels
