4 penggulung HAEUSLER VRM-HY 4000/300
Haeusler VRM-HY 4000/300

Name: Haeusler VRM-HY 4000/300
Brand: Haeusler
Availability: InStock

Tahun pembuatan

2010

Keadaan

Terpakai

Lokasi

Babberich

4 penggulung HAEUSLER VRM-HY 4000/300 Haeusler VRM-HY 4000/300

Data asas

Nama mesin:: 4 penggulung HAEUSLER VRM-HY 4000/300

Pengeluar:: Haeusler

Model:: VRM-HY 4000/300

Tahun pembuatan:: 2010

Keadaan:: sangat baik (terpakai)

Harga & Lokasi

Lokasi:: Transito 21, 6909 DA Babberich, Nederland

Hubungi

Butiran teknikal

Dimensi dan berat

Berat keseluruhan:

819,000 kg

Jumlah panjang:

15,000 mm

Lebar keseluruhan:

7,200 mm

Jumlah ketinggian:

7,800 mm

Bahan/produk boleh diproses

Ketebalan lembaran (maks.):

300 mm

Maklumat lanjut

Pengeluar pengawal:

Beckof

Diameter penggelek (bawah):

1,450 mm

Diameter penggelek (atas):

1,500 mm

Diameter gulungan sisi:

1,100 mm

Jenis kawalan:

Kawalan CNC

Bilangan penggelek:

Butiran tawaran

ID iklan:: A23198786

Nombor rujukan:: 9871

Kemas kini:: terakhir pada 24.10.2026

Penerangan

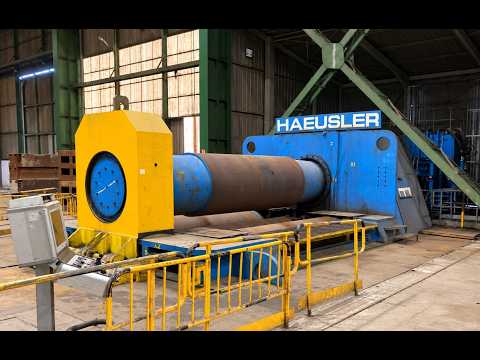

4 roll plate bender HAEUSLER - VRM-HY 4000/300
MACH-ID 9871
Make: HAEUSLER
Type: VRM-HY 4000/300
Control: BECKHOF
YOP: 2010
Minimum mending diameter 1720 mm
Distance Top to Lower roll 300 mm
Pressing force Lower to upper roll 7200 Ton
Roll quality 60CrMoV 12.5 with strength 900-1050 Nm/mm2
Controll panel with Bend-iT (Beckhoff)
Largest machine build ever by haeusler (1 off 2 in World)

Rolling CANS, VESSELS, BOILERS
Components for SMR / AMR steam drums, high-pressure systems
Small Modular Reactors and Advanced Modular reactors
Power generation sector ; Offshore Market

Rolling width: 4000mm
Rolling thickness 3x toproll Ø:250mm
Rolling thickness 5x toproll Ø:300mm
Rolling thickness prebending: 270mm
Top Roll Ø: 1500mm
Bottom Roll Ø: 1450mm
Side roll Ø: 1100mm
Number of rolls: 4
Rolling speed: 1,2 + 2,4 + 3,6 M/Min
Number of driven rolls: 2
Ljdpfx Aj Ad Uccjgfjhn
Power: 700kW
Length: 15000mm
Width: 7200mm
Height: 7800mm
Weight: 819000kg
