Mesin penggulung bulat 4-rol HAEUSLER VRM-HY 3600

Haeusler VRM-HY 3600/300

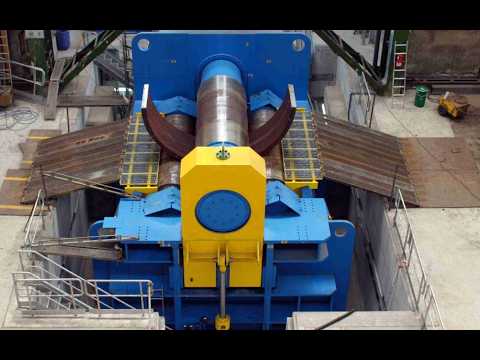

4 roll plate bender HAEUSLER - VRM-HY 3600/300mm
MACH-ID 9870
Make: HAEUSLER
Type: VRM-HY 3600/300
Control: BECKHOF
YOP: 2010
Lhsdj Ad Uk Tepfx Afkjn
WORLDWIDE UNIQUE OPPORTUNITY – ONE OF THE LARGEST AND MOST POWERFUL 4-ROLL PLATE BENDING MACHINES EVER BUILT BY HAEUSLER 3600 x 300 mm
Mach4Metal is proud to announce the acquisition of one of the largest and most powerful 4-roll plate bending machines ever manufactured by HAEUSLER, Switzerland.
Only two identical machines of this exceptional size and capacity were ever built. The second machine is installed at Dillinger Hütte in Germany.
With a total weight exceeding 800 tonnes, an extraordinary pressing force of more than 7,000 tonnes from the lower roll against the upper roll, and a plate rolling capacity of up to 300 mm thickness, this machine represents the highest level of heavy-duty plate forming technology.
A RARE OPPORTUNITY FOR MANUFACTURERS OPERATING IN THE WORLD'S MOST DEMANDING INDUSTRIES.
This extraordinary machine is particularly suitable for manufacturers specialising in:


Nuclear energy – Small Modular Reactors (SMR) and Advanced Modular Reactors (AMR)
Nuclear reactor pressure vessel components
Heavy-wall pressure vessels and high-pressure systems
Heavy industrial components requiring extreme plate thickness and forming forces
Machines of this size and capacity are extremely rare on the worldwide market. Engineering and manufacturing a comparable new machine would require a substantial investment and a significant delivery period.
Mach4Metal offers the opportunity to acquire this remarkable machine with immediate availability.
For companies planning to expand their production capabilities in nuclear energy, power generation, offshore construction or heavy pressure vessel manufacturing, this could be a once-in-a-generation investment opportunity.
If your company is active in SMR/AMR technology, nuclear power generation, pressure vessel manufacturing, heavy boiler production or offshore fabrication, we invite you to contact Mach4Metal.
ONE OF ONLY TWO IDENTICAL MACHINES EVER BUILT. EXCEPTIONAL CAPACITY. IMMEDIATE AVAILABILITY. WORLDWIDE DELIVERY.
Rolling CANS, VESSELS, BOILERS
Components for SMR / AMR steam drums, high-pressure systems
Small Modular Reactors and Advanced Modular reactors
Power generation sector; Offshore Market


Rolling width 3650mm
Rolling thickness 3x toproll Ø:250mm
Rolling thickness 5x toproll Ø:300mm
Rolling thickness prebending: 270mm
Top Roll Ø: 1500mm
Bottom Roll Ø: 1450mm
Side roll Ø: 1100mm
Number of rolls: 4
Rolling speed: 1,2 + 2,4 + 3,6 M/Min
Number of driven rolls: 2
Power: 700kW
Length: 15000mm
Width: 7200mm
Height: 7800mm
Weight: 802000kg
