Gergaji manik kaca

GRAULE Kappsaege KS

Number of motors , Stück
0 , mm
Control , 0
cutting width 115 und 82 mm
Cutting height 55 mm
Motor output 2.0 kW
machine weight ab. 45 kg

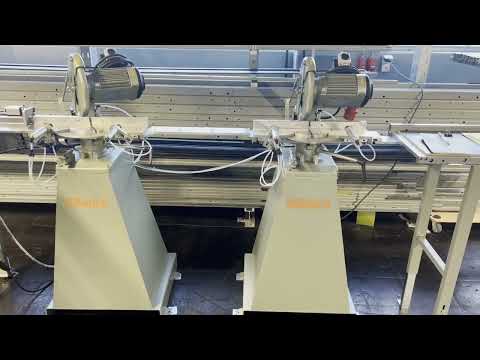

Graule KS crosscut saw for cutting (glass) beads with a rebated joint
with manual and electronic length stop
Suitable for wood, PVC, aluminum
-----
Brief manufacturer's description:
- Crosscut and miter saw for precise and user-friendly cutting to length
in the strip area
- Sturdy gray cast iron construction
- A double ball-bearing axle acts as a pivot point below
the material support table, facilitating material cutting. The cut
is always made at the rear top.
- Quick miter adjustment up to 45°
- Readjustable fixed stops at 90° and 45°
- Upper saw blade guard can be connected to extraction system
-----
Technical data:
Motor: 400 V / 2.0 kW
Speed: 2,800 rpm
Max. cutting width: 115 mm (at 90°); 82 mm (at 45°)
Max. cutting height: 55 mm
Mitre range: 45° - 90° - 45°
Saw blade diameter: 250 mm
Extraction nozzle diameter: 45 kg
-----
Technical description:
Item 1.1 Crosscut and miter saw type KS,
2 kW, 400 V, 30/40 mm saw blade holder

Item 1.2 Pivot point LEFT
Ppedpfx Adey T R Sqj Ijw

Item 1.3 Pneumatic material clamping for KS, on both sides of the saw blade,
2 horizontal pneumatic cylinders, controlled via roller valve during
saw stroke, can be switched off

Item 1.4 HM circular saw blade for wood 250 x 2.8 x 40 mm 80 teeth neg
----- -----
Price of the above machine on request!
Plus packaging and shipping
-----
Options with additional charge:

Item 1.5: EUR 1,270.00
Digital electronic angle display for one axis, crystal display,
1.5 V battery power supply, reading via magnetic tape and magnetic sensor,
resolution 0.1°

Item 1.6: EUR 695.00
Machine stand for KS crosscut saw
-----
Item 2.1: Electronic length stop with support plate EUR 7,290.00
Electronic length stop type RLE 2.0 m – with support plate
Mounting side: LEFT
Electronic length stop system for cutting strips
Travel distance 1.8 m, overall length 2.0 m
10" touch display, 230 V connection
Feed speed 40 m/min
Direct measuring system – repeat accuracy +/- 0.1 mm

Working mode: (1) automatic absolute stop, (2) cutting lists,
(3) pusher cutting lists, (4) step measurement, (5) fine adjustment
Program memory for up to 999 cutting lists
USB import and direct editing of cutting lists on the terminal
Stop can be folded away to the rear
With support foot

Item 2.2: 295.00 EUR
Support 2 m, right, 110 mm wide, with support
-----
Item 3.1: Manual length stop EUR 600.00
Length stop 2 m, left, with 110 mm wide support, with scale,
foldable stop slider and support

Item 3.2: EUR 295.00
Support 2 m, right, 110 mm wide, with bracket
-----
(Technical data according to manufacturer - no guarantee!)
All prices quoted are net. Plus statutory VAT.
