ERGOMAT TBC-42

ERGOMAT TBC-42

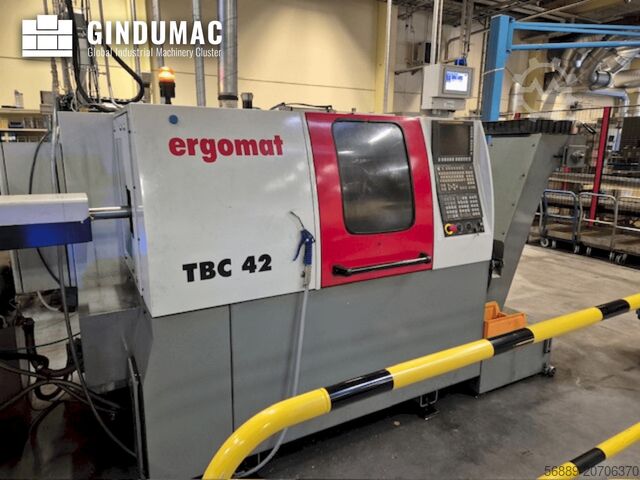

This 6-axis ERGOMAT TBC-42 Swiss Turning Machine was manufactured in 2012. It features a maximum material diameter of 42 mm and a spindle speed up to 5000 rpm. Equipped with a Fanuc 18i-TB Dual Path control, it offers precision and versatility with 8 tool positions and rapid feed rates up to 30 m/min. If you are looking to get high-quality turning capabilities consider the ERGOMAT TBC-42 machine we have for tact us for more information.

Machine Benefits

Technical Machine Benefits


• Main spindle power (intermittent): 11. 0 kw

• Main spindle torque (continuous): 95. 5 nm

• Rapid feed cross slide x1/z1: 15/15 m/min

• Rapid feed turret slide x2/z2: 15/30 m/min

• Rapid feed vertical slide v1/v2: 15/15 m/min

• Thrust on all axes: 2500 n

Extra Information

Turret
Tool positions: 8
Tool section: 16 x 16 mm
Tool holder diameter: 25 mm
Standard tool holder: VDI 25
Switching time station to station: 0.3 sec
Switching time additional station: 0.06 sec
Switching time 180°: 0.48 sec
Tools
Live tool positions: 8
Lhsdpfx Ajx D Sccemroh
Live tool holder shaft diameter: 25 mm
Live tool power (continuous): 1.1 kW
Live tool power (intermittent): 3.7 kW
Live tool torque: 7 Nm
Live tool maximum speed: 6000 rpm

Dimensions
Machine Depth 2630 mm
