EQ Automation BD63CNC4A2SP

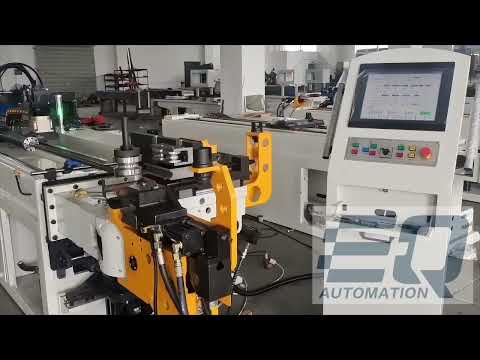

Full-Automatic Single-Head CNC Bending Machine with Auxiliary Push Function
Machine Model: BD63CNC4A2SP
Machine Applications
 Transportation Sector
For municipal engineering, locomotives, automobiles, and bicycles: exhaust manifolds, brake lines, fuel supply conduits, steering
mechanisms, air - conditioning ducting systems, seating assemblies, balancing components, bumper structures, window frame
assemblies, handlebar components, and frame structures.
 Furniture Industry
Indoor and outdoor seating and table sets, office furniture including desks and chairs, shelving units, bed frames and associated
furniture pieces.
 Leisure and Recreation Industry
Fitness apparatus, infant strollers, utility carts, and amusement ride installations.
 HVAC (Heating, Ventilation, and Air - Conditioning) and Appliance Industry
Water heating units, electric heating appliances, gas - fired cooktops, refrigeration units, and air - conditioning equipment.
 Heavy Industrial Sphere
Piping networks for boilers, heat exchanger, power generation plants, chemical processing facilities, diesel engine manufacturing, and
shipbuilding operations.
 Diverse Other Industries
Household consumer goods, rehabilitation - oriented medical devices, sanitary fixtures, the decoration and interior design sector, the
construction industry, agricultural machinery and equipment, and the aviation manufacturing and maintenance industry.
Specification Model: BD63CNC4A2SP
The Largest Applicable Carbon Steel, Copper, Aluminum
Pipe or Profiles
Φ63×2.0MM (THICKNESS MAX. 2.0)
OR PROFILES AS PER MOLD DESIGN *
The Largest Applicable Stainless Steel or High Alloy Steel
Pipe, Profile Etc.
Φ55×2.0MM (THICKNESS MAX. 2.0)
OR PROFILES AS PER MOLD DESIGN *
Maximum Reciprocating Feeding Pipe Φ63MM
PROFILE AS PER MOLD DESIGN *
Maximum Feeding Stokes (*) 3200MM
Maximum Bending Radius (*) 550MM
Maximum Bend Angle 190°
Maximum Core Pulling Distance 3500MM
Equipment Working Height 1300MM
Pipe Bending Servo Power 7.0KW
Itsdpfx Asyaz Egol Ajh
Pipe Bending Speed MAX. 150°/S ADJUSTABLE
Bending Accuracy ±0.1°
Feeding Servo Power 2.0KW
Feeding Speed 200-1000MM/S ADJUSTABLE
Feeding Accuracy ±0.1MM
Rotation Servo Power 1.0KW
Rotation Speed 180°/S ADJUSTABLE
Rotation Accuracy ±0.1°
Hydraulic Motor 7.5KW
Hydraulic System Pressure 12 MPA
Total Power 18 KW
Equipment Size: Length * Width * Height 4000*1000*1300mm
Equipment Weight 1800KG
