Miter saw

Elumatec

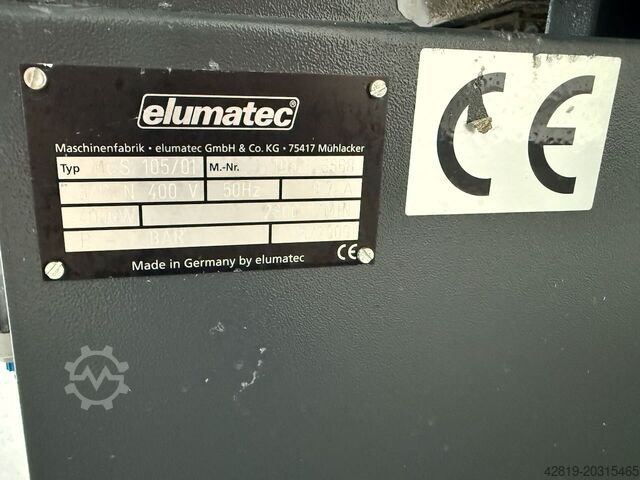

Mitre Saw Elumatec, Type: MGS 105, Year: 2009, with stop and measuring system Elumatec Type: AMS 200

Serial No.: 1050126568
Swivel range: Manual, 22.5° left and right, with digital display
Tilt range: Pneumatic, from 90° to 45°
Saw blade diameter: 420 mm
Saw blade speed: 2,800 rpm
Power output: 4 kW
Hnodpfx Asxn Umlef Eeu
Electrical connection: 230/400 V, 3Ph, 50 Hz
Compressed air connection: 7 bar
Air consumption: 20 l without misting, 32 l with misting
Dimensions (L x W x H): 1,400 x 1,500 x 1,880 mm
Weight: 750 kg

Stop and measuring system AMS 200
For precise cutting-to-length of aluminium profiles
Serial No.: 1050126568
Length: 4,500 mm
Positioning accuracy: +/-0.1 mm per meter
Electrical connection: 230 V; 1 Ph, 50/60 Hz
Pneumatic position locking
Matrix display
5.7" with membrane keypad and navigation dial for operating menus
Memory for 1,000 records
The memory can store set number, length measurement, profile number, angle position, and quantity.
USB interface (front)
Roller conveyor

(Changes and errors in technical data as well as prior sale reserved)
