Pemotong permukaan rata

Elitron Kombo TH 31.20

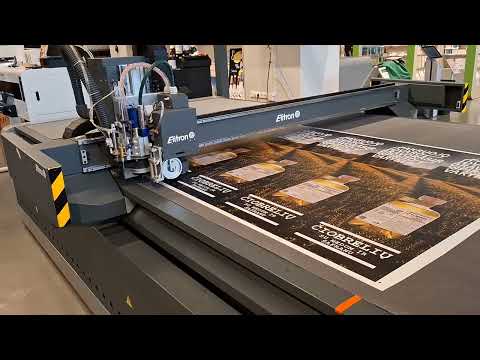

Flatbed Cutter Elitron TH 31.20 for Sale. Year of Manufacture: 2021

Two-carriage configuration for increased productivity.

Specifications:
- Working area: 3150 x 2050 mm
- Working speed up to 102 m/min
- Two independent cutting heads for materials up to 50 mm thick
- Working area divided into 40 individual vacuum sectors
- High-efficiency 11 kW vacuum pump integrated into the machine frame
- Monolithic frame
- Axes driven by linear roller bearings and precision rack-and-pinion system

Bsdjw Duchjpfx Ab Ssli
Configuration includes:
- One electric oscillating knife module
- One pneumatic oscillating knife module
- Two tangential modules
- Two creasing modules
- One 3kW milling module (60,000 rpm)
- Two laser pointers
- Two marking tools
- External dust extractor for milling (3.45 kW)
- Seeker System PRO
- Video projection system onto the worktable
- Twin-Cut software for optimizing the workload of both cutting heads to maximize performance and output

The Elitron flatbed cutter is installed in our demo showroom. Inspection and testing are welcome.
Installation and training services can be provided for an additional fee.
