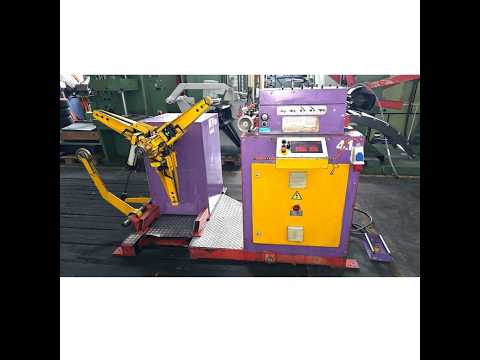

Pelurus decoiler

DREHER 1675-B11-FQ / 2350 B-FPS

material width 300 mm
coil weight 1,25 t
material thickness 0,4 - 3,5 mm
coil internal diameter 320 - 420 mm
coil external diameter 1300 mm
material cross-cut 750 mm²
no. of straightening rolls 11
Bljdpfxowc U Ize Ab Ssi
straightening roll diameter 60 mm
number of draw-in rolls 4
roll diameter 60 mm
speed 5 - 30 m/min
power requirement 5,0 kW
Weight 1,4 t
Dimensions (WxDxH) 3,3 x 1,85 x 1,7 m
Straightening machine (Type 1675-B11-FQ)
with infinitely variable drive, driven straightening rolls, manual individual adjustment of the roller cassette, cntralized adjustment of the material width, outlet rolls
Decoiler, single (Type 2350 B-FPS)
not driven, with pneumatic lag break, hydraulic centralized expansion, pneumatic snubber roll
coil loop control via sensor
