Mesin pengetam kayu

Costa

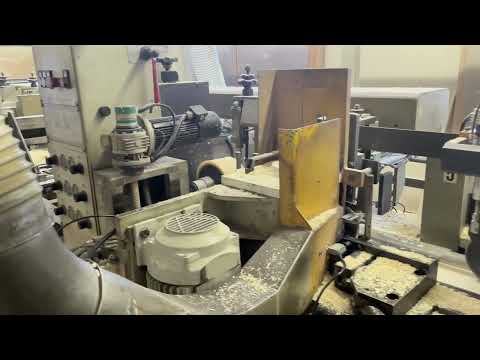

Costa Planing Machine
High-Performance Profiling Planer – Processing Centre with 10 spindles, used exclusively for processing spruce wood.

Technical Features:
- Working width up to 300 mm
- Multi-stroke spindle system for flexible profiling and dimensional processing
- Feed rate: 140 m/min to 200 m/min
- NC control for precise, repeatable set-up and processing operations
- All spindles equipped with support bearings (hydraulic clamping) for smooth operation, dimensional accuracy, and surface quality
- Planing table in perfect condition, showing no signs of wear or damage
- Precision work in terms of dimension and angle across the entire working width
- The machine is in technically flawless condition and operates precisely and reliably.

Spindle Configuration:
- Horizontal spindle
- Lifting spindle right, vertical
- Lifting spindle left, vertical
- Lifting spindle horizontal
Dujdpfx Afox N D Rreyen
- Lifting spindle right, vertical
- Lifting spindle left, vertical
- Spindle top, horizontal
- Spindle bottom, horizontal
- Spindle bottom, horizontal
- Levelling spindle bottom, horizontal

This spindle arrangement enables complete machining of workpieces in a single pass with high dimensional accuracy and excellent surface quality.
