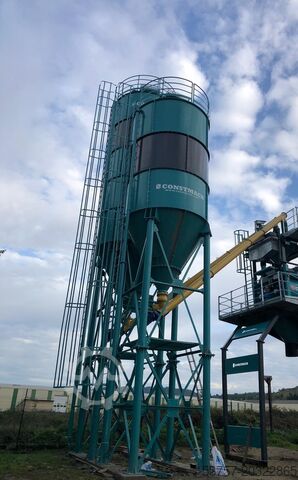

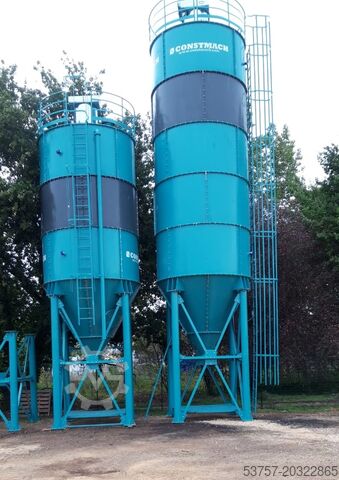

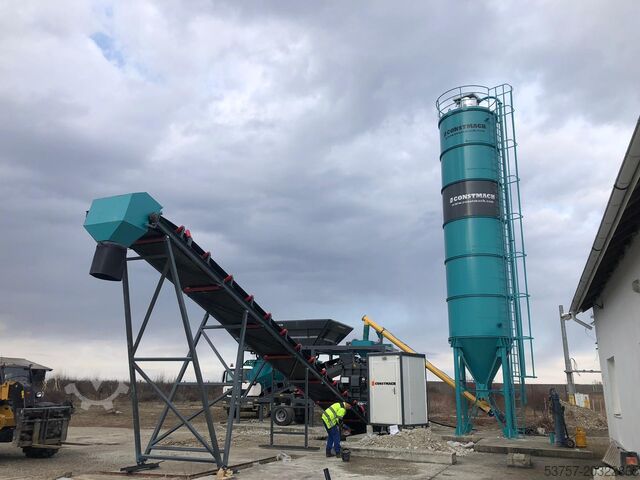

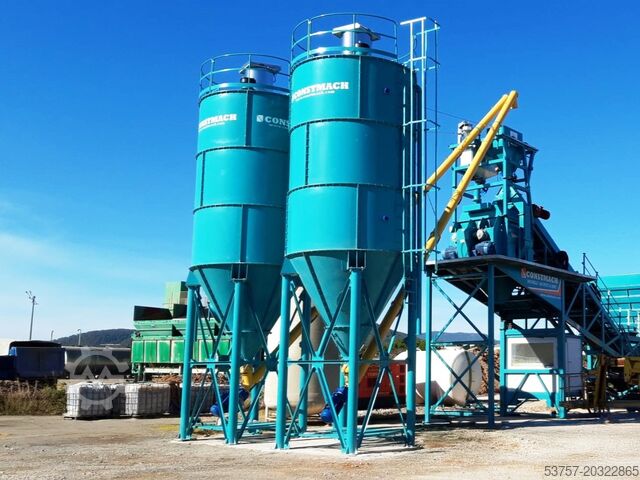

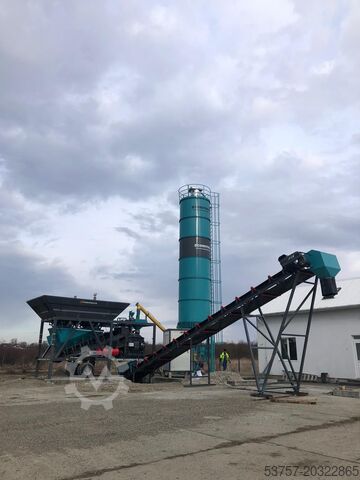

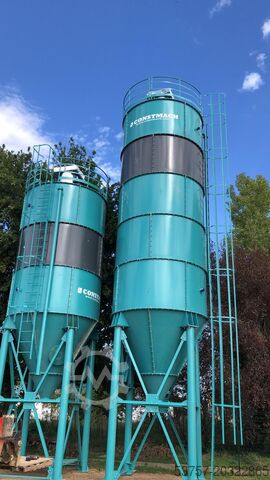

CONSTMACH 50 Ton Capacity Cement Silo

CONSTMACH CS-50, a 50-ton capacity cement silo, is designed for high efficiency in various industrial applications such as concrete plants, block production lines, and ground survey applications. This silo, which can be produced in either bolted or welded types according to need, can be easily transported with one 40 ft OT container or a truck thanks to its 2-set bolted version. Its compact structure and modular assembly feature provide a significant advantage, especially in terms of field installation.

The CS-50 silo is supplied complete with all standard equipment, including a maintenance platform, cement filling pipe, internal and external manholes, safety guards, roof flanges for the air filter and pressure relief valve, and a butterfly valve cone flange. In addition, it is delivered fully equipped with a screw conveyor, air filter, pressure relief valve, level indicators, and fluidizing nozzles of the desired length.

In bolted type production, silo parts are manufactured with high precision using laser cutting and drilling technology and are easily assembled on site. Each silo is coated with a 140-micron-thick, 1-layer anti-corrosive primer and 2 layers of epoxy paint to ensure long-lasting corrosion resistance. Furthermore, all static and mechanical analyses are performed using ANSYS Workbench CAE software; thus, the silo can safely store 50 tons of cement or similar materials without any deformation.

CS-50 - 50-Ton Cement Silo Technical Specifications

Silo Capacity: 50 tons / 38 m³
Silo Height: 15000 mm
Silo Diameter: Ø 2400 mm
Number of Silo Feet: 4
Silo Outlet Diameter: Ø 300 mm
Number of Components: 8
Silo Weight: 6160 kg
Foot Material: 168 x 5 mm Steel Pipe
Foot Supports: NPL 60 mm Metal Sheet
Foot Plates: 15 mm Metal Sheet
Conical Support Material: 100 mm Steel C Channel
Conical Part Material: ST-37, 5 mm Plate
Body Material: ST-37, 4 mm Plate
Top Cover Material: ST-37, 4 mm Plate
Filling Pipe: 4" Steel Pipe
Internal Manhole: Available
External Manhole: Available
Roof Guardrail: Available
Maintenance Platform: Available

Why Choose the CS-50 Cement Silo?

Iedoxphvvepfx Abyebc
CONSTMACH combines quality, durability, and engineering power in cement silo production. The CS-50 model offers long-term use with its high-strength steel structure, portable modular design, and international standard production process. It provides uninterrupted support for your projects thanks to its structural safety verified by high-precision analyses, ease of maintenance, and quick assembly advantage. By choosing CONSTMACH, you get not just a cement silo, but a reliable, performance-oriented investment that will operate trouble-free for many years.
